1. Types and structures of shuttleless loom temple support devices
(1) Shuttleless loom temple support devices are mainly divided into four categories according to the type of loom; Projectile loom temple support devices , air-jet loom side support device, rapier loom side support device, water-jet loom side support device.
There are many types of loom models in each major category of temple support devices. Depending on the loom model, the temple support device specifications and installation size and shape are also different. Therefore, each major category of temple supports The device is also divided into many varieties. In each variety, according to the different fabrics, the temple device of the same variety can be divided into multiple specifications, such as: thick fabric, woolen fabric, medium-thick fabric, light fabric , filament fabrics, and silk fabrics, the specifications of the temple supports are also different.

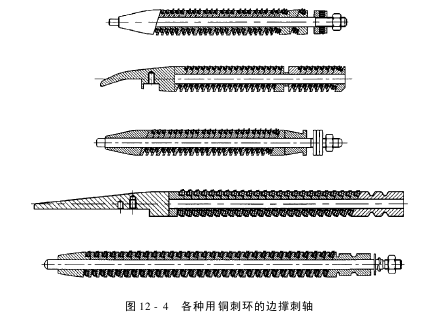

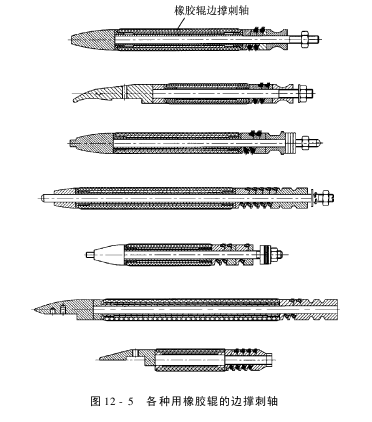

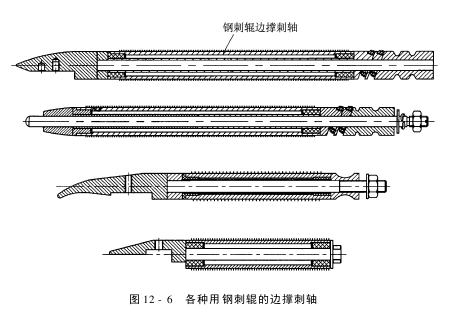

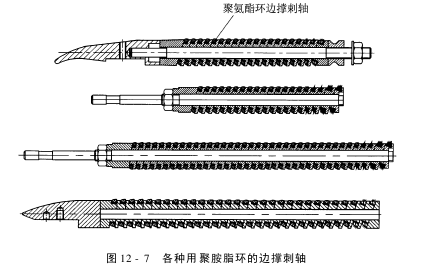

(2) The structure of the temple support device of the shuttleless loom mainly includes the four modes of copper licker-in operation, polyurethane ring operation, rubber roller operation and steel licker-in operation, as shown in Figure 12-4~Figure 12 -7 shown. Thick fabrics, woolen fabrics, and medium-thick fabrics must be equipped with a temple device running a copper thorn ring, but the needle exposure height and needle arrangement need to change according to the thickness and warp and weft density of the fabric. Light fabrics, filament fabrics, Low extra high density fabrics need to be equipped with a silk temple device running with rubber rollers. Low extra high density fabrics with high tension and silk fabrics need to be equipped with steel temple devices running with steel licker-in rollers.
2. Technical requirements for shuttleless loom temple support device
(1) The surface roughness of the copper thorn ring should reach 3.2.
(2) The steel needles on the copper thorn ring should have no hooks, broken ends, or falling off.
(3) The copper stab ring operates flexibly after installation.
(4) The exposed surfaces of the steel needles on the copper thorn ring should be flush, and the height difference should not exceed 0.15mm.
(5) The rubber roller runs smoothly after installation and there is no obvious difference in threads.
(6) The thorn points of the steel licker-in must be sharp and free of jumping and broken thorns.
(7) The installation dimensions of the temple support device should comply with the installation requirements of the loom.
